The SM450 module is the solution for the speaker/system designer wanting streaming features and TV sound, combined with DSP-controlled amplifiers.
It features 4x50Wrms amplification - each channel can be freely tuned by DSP and settings stored permanently.
The amplifier mapping can be widely configured, to fulfill many different use cases like:
- Stereo bi-amp outputs. 2xwoofer (L+R) and 2xtweeter (L+R)
- Dual stereo outputs. 2 left channels and 2 right channels
- Sub/sat outputs. 2 channels for subwoofer and 2 channels for L+R satellites
- 4 mono outputs - e.g. for CI systems
Supported streaming:
- Google ChromeCast (Wi-Fi)
- Apple AirPlay 2 (Wi-Fi)
- Spotify Connect (Wi-Fi)
- DLNA (Wi-Fi)
- Bluetooth audio
Direct inputs:
- HDMI(ARC) audio, PCM audio only
- 3.5mm analog and digital SPDIF
The SM450 is a module perfect for speakers used together with TV applications.
It has our intelligent operation system, allowing the SM450 to automatically playback the input you want, based on an advanced algorithm.
Volume is adjusted remotely with HDMI and streaming inputs, thus leading to no need for any interaction with the product itself.

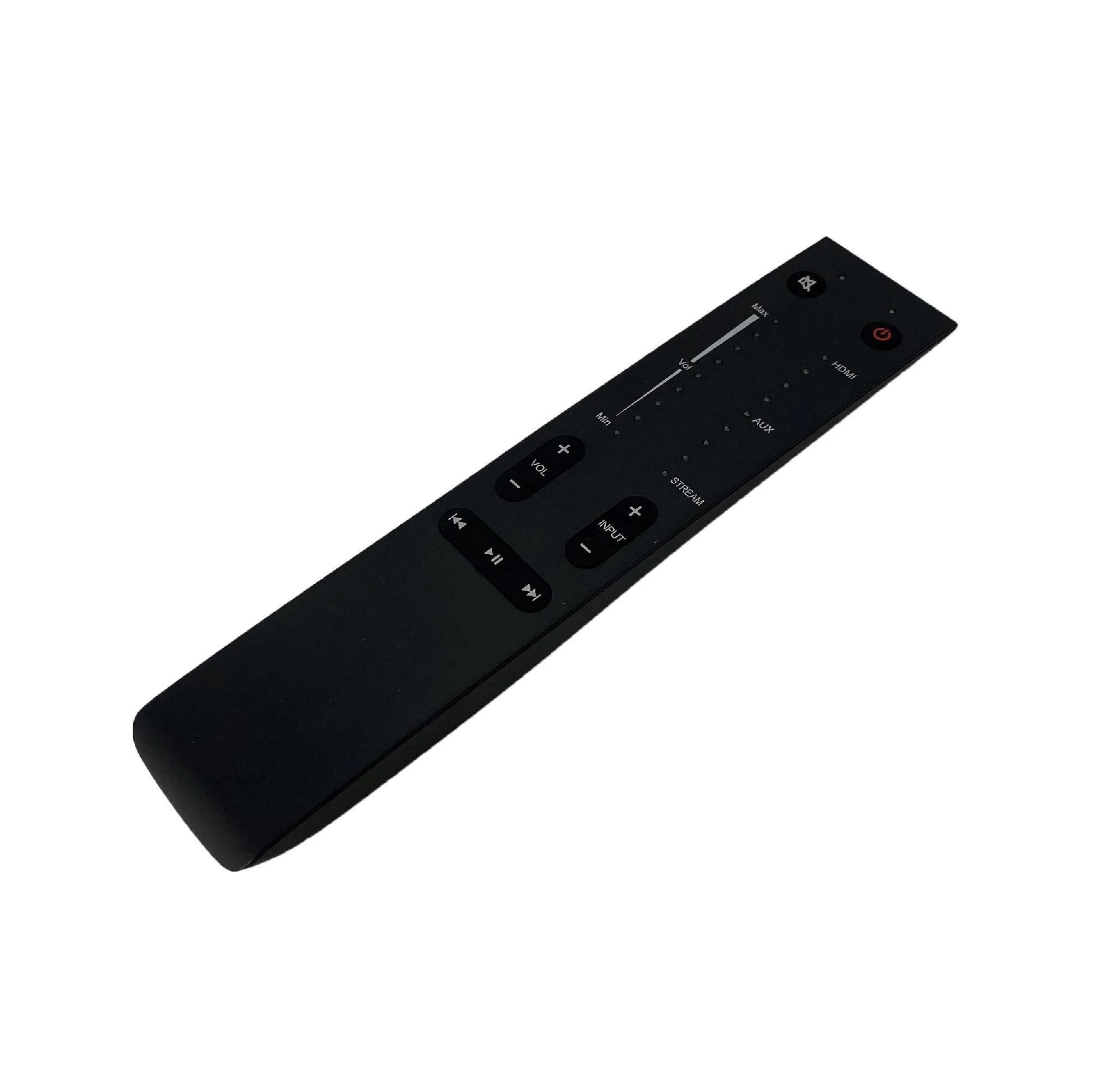

As an option, the SM450 also supports our 2-way RF smart remote which enables manual operation.
The SM450 features our APP-based room correction system - which is fully integrated into the core of the SM450.

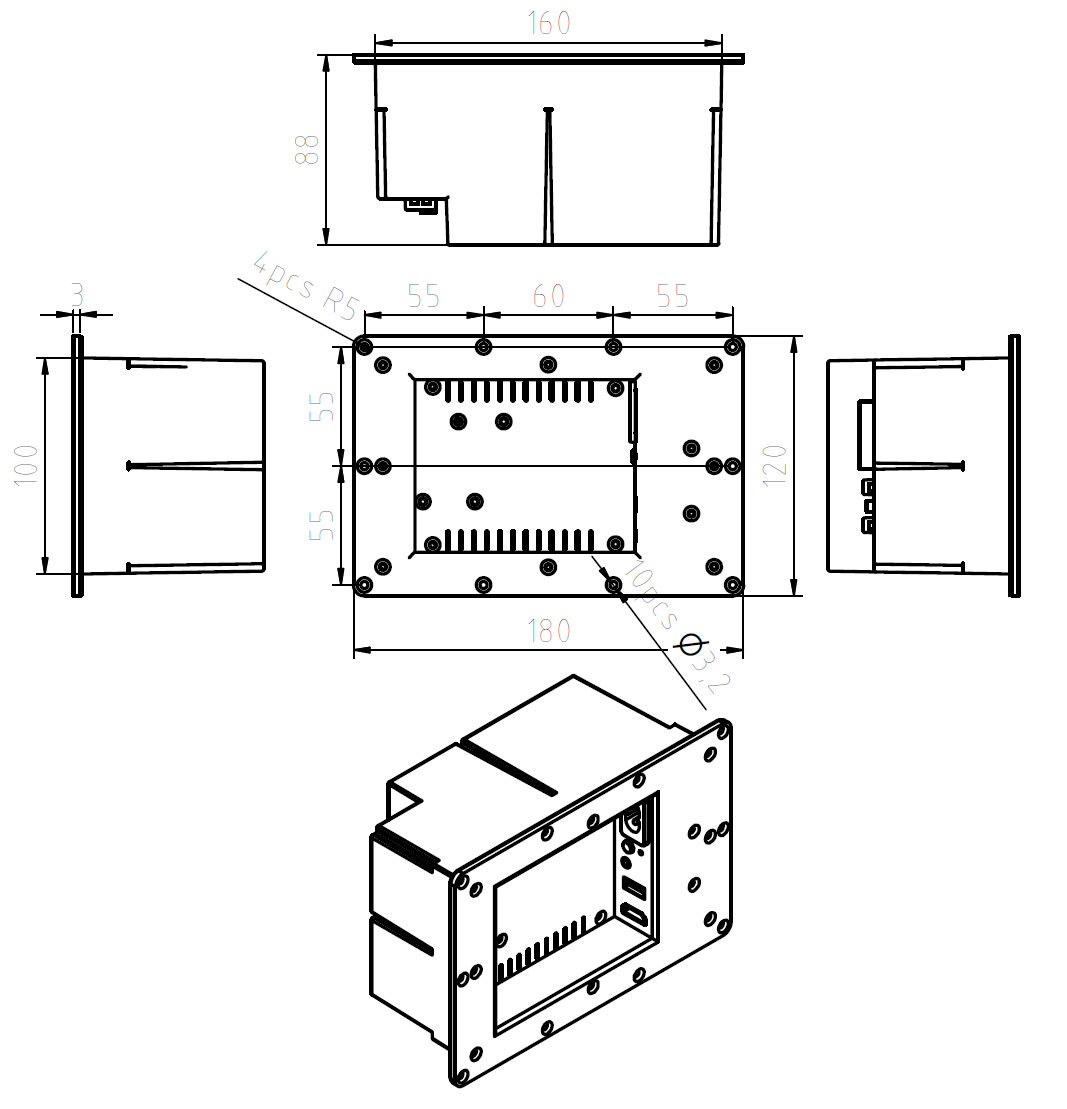

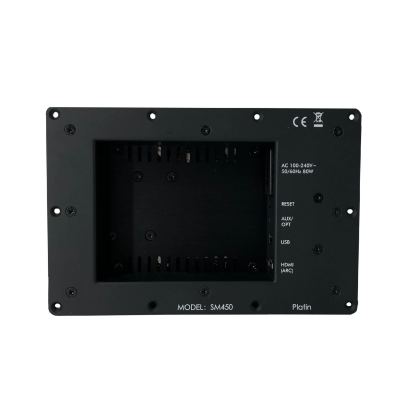

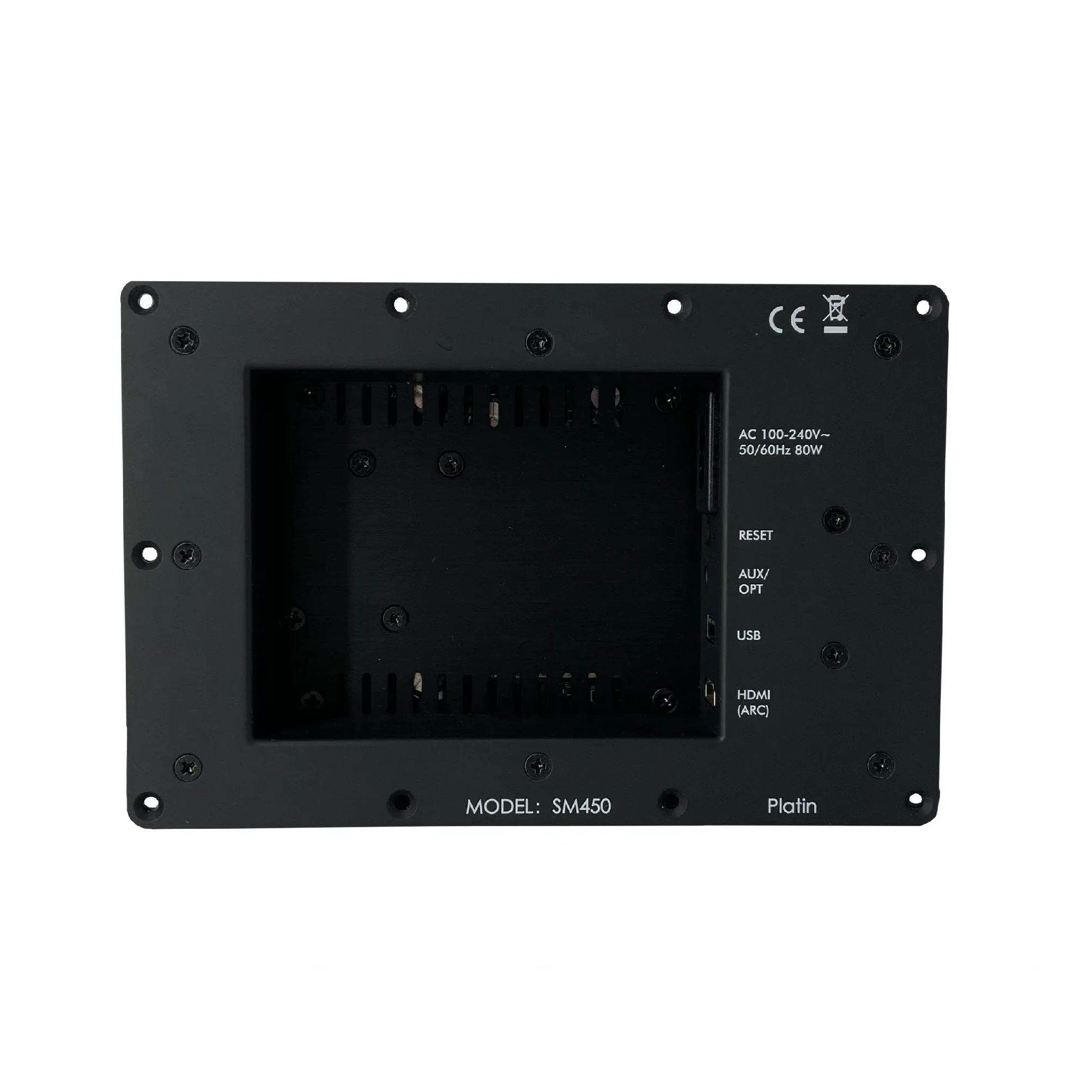

The SM450 is a very compact design - rear plate is 120x180mm and built-in-depth is 88mm. The input connectors are directed along with the rear plate and countersunk, allowing positioning close to a rear wall.
The SM450 module itself is pre-certified for EU and US markets. Thus the module can safely be integrated into any audio application.
